Mini Water Pump 12v Food Grade Sanitary Electric Diaphragm Pump | PINCHEGN
Customized Service
To provide customers with quality products and satisfactory service
PYSP385-XA
Mini water pump 12v
Mini water pump 12v food grade sanitary, the electric diaphragm pump is small and convenient, the design of the pump head is easy to disassemble, easy to clean and maintain, which greatly improves the practicality.
Mini water pump 12v is manufactured in accordance with strict quality standards before leaving the factory, with good safety performance and can be used with confidence. Food grade sanitary electric diaphragm pump.
Product Information
|
PYSP385 (Water Pump) |
|||
| *Other Parameters: according to customer demand for design | |||
| Rate Voltage | DC 3V | DC 6V | DC 9V |
| Rate Current | ≤1200mA | ≤600mA | ≤400mA |
| Power | 3.6w | 3.6w | 3.6w |
| Air Tap .O.D | φ 8.0mm | ||
| Maximum Water Pressure | ≥30 psi (200kpa) | ||
| Water Flow | 0.3-1.2 LPM | ||
| Noise Level | ≤65db (30cm away) | ||
| Life Test | ≥500 hrs | ||
| Pump Head | ≥5m | ||
| Suction Head | ≥5m | ||
| Weight | 60g | ||

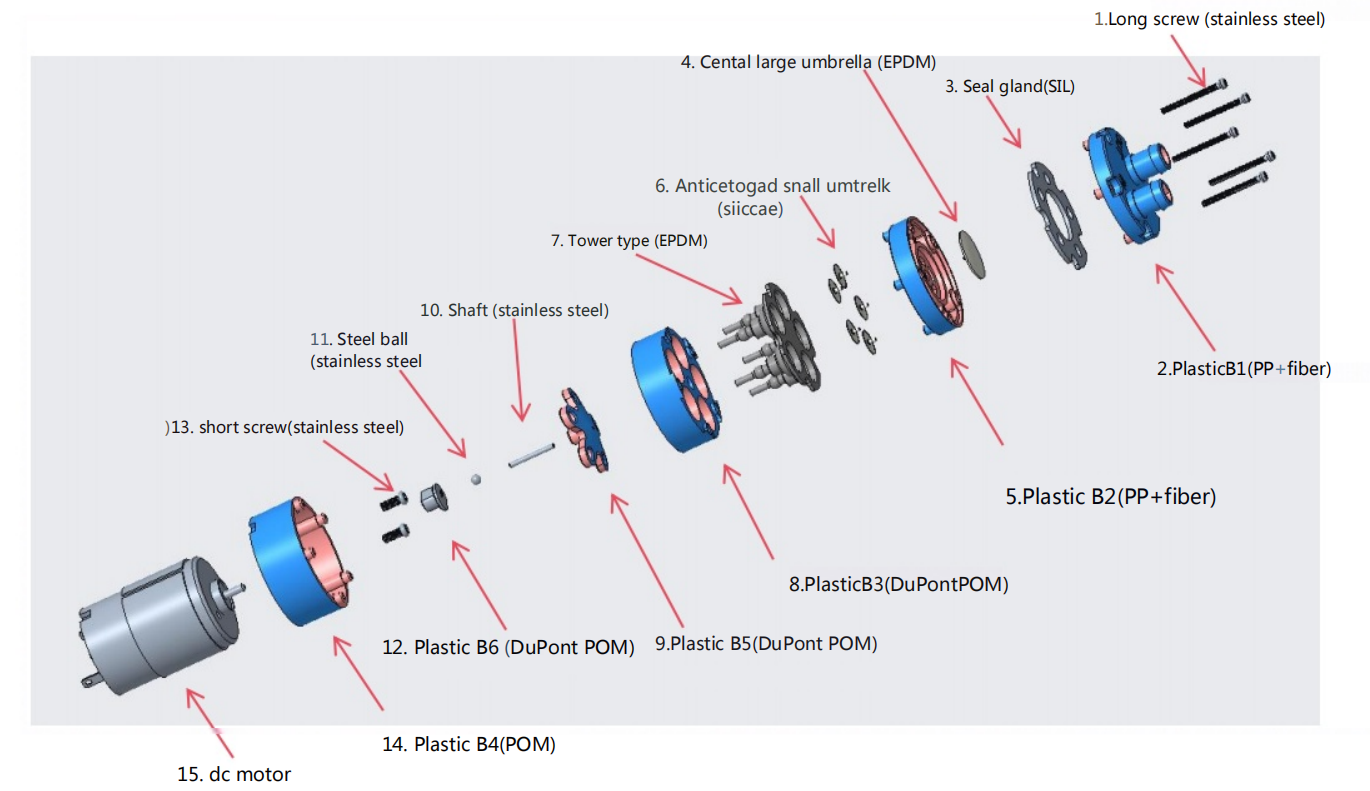

Specification Engineering Drawing
Application
Application for Mini Water Pump 12v
Food grade soymilk machine, coffee machine, water dispenser, coffee table water pump;
dishwasher
Electric decanter
Foam hand sanitizer
Water dispenser
Vacuum packing machine
Tea table
Images for micro gear pump---100% live-action shooting, Quality Guarantee
Product Photograph Real Shot
We supply more than just product, we engineer solutions optimised to suit your application requirements.
If You Are in Business, You May Like
Types of Micro Pump Products
Best Micro Water Pump Manufacturer and Exporter In China
We can provide the best price and technical support for commercial projects.
how does an electric diaphragm pump work
The types of diaphragm pumps can be divided into pneumatic diaphragm pump, electric diaphragm pump and hydraulic diaphragm pump according to the power used by the actuator, that is, pneumatic diaphragm pump with compressed air as the power source and electric diaphragm pump with electricity as the power source, In liquid medium (such as oil, etc.)
What is electric diaphragm pump?
Diaphragm pumps are positive displacement pumps. They use a combination of the reciprocating action of two flexible diaphragms, two inlet and two outlet ball check valves to pump a fluid.
There are two pump chambers which are divided by the diaphragms into air and fluid regions.
What are the disadvantages of a diaphragm pump?
1. The pressure cannot be increased, limited by the pressure of the air source, and 6bar is the upper limit;
2. Noise and pipeline vibration are especially obvious when the volume is large;
3. Compared with the screw pump, the diaphragm has a shorter service life and is easily damaged;
4. Because the flow rate of diaphragm pumps is usually not too large, most of them are used in small systems.
Can diaphragm pumps run continuously?
Yes, As long as the diaphragm is intact and the inlet and outlet valves are sealed reliably, the diaphragm pump can work continuously.
What is the lifespan of a diaphragm pump?
Our Pincheng’s Diaphragm pump have 500hrs lifetime. and we can customized accept the other lifespan requirement.
